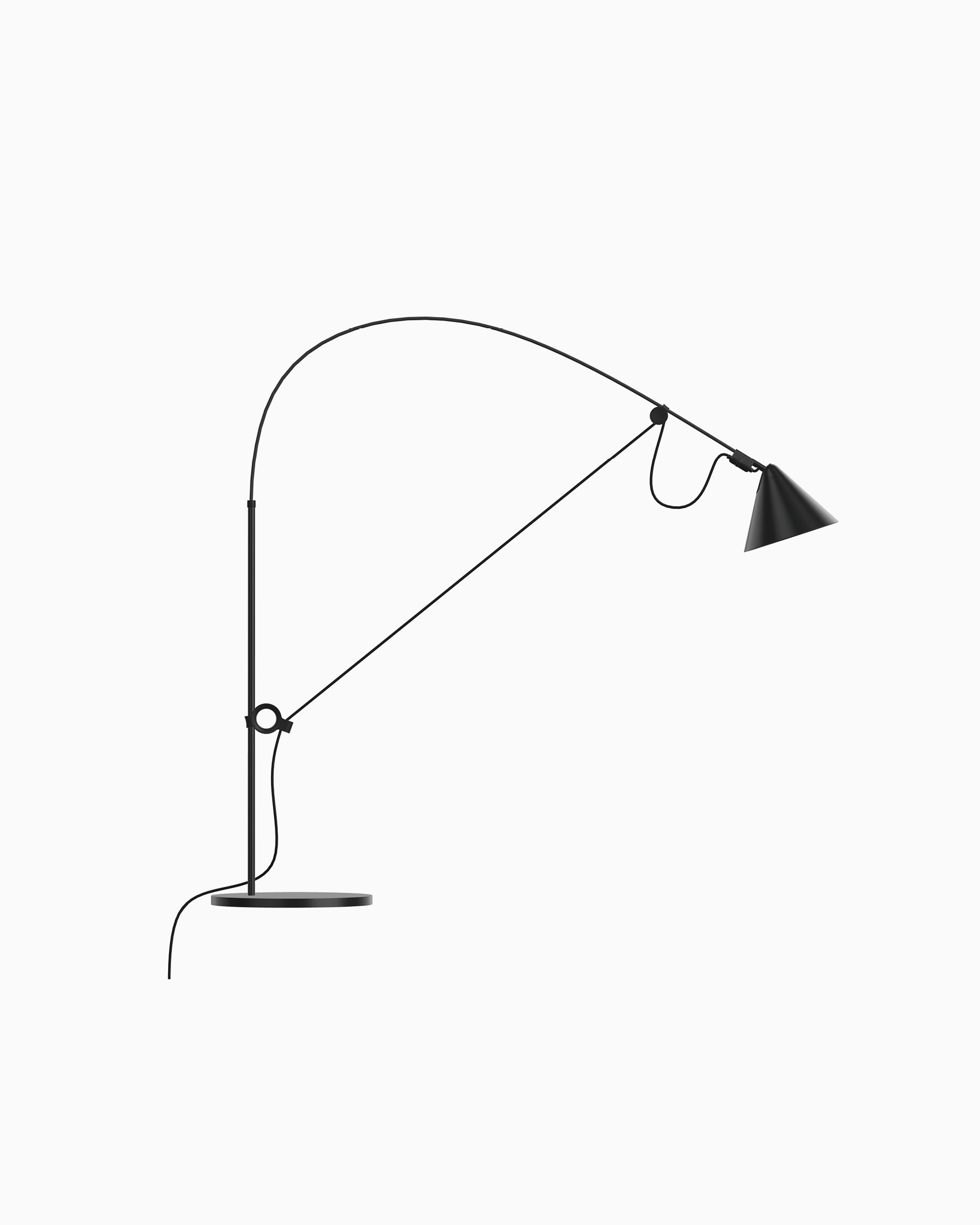

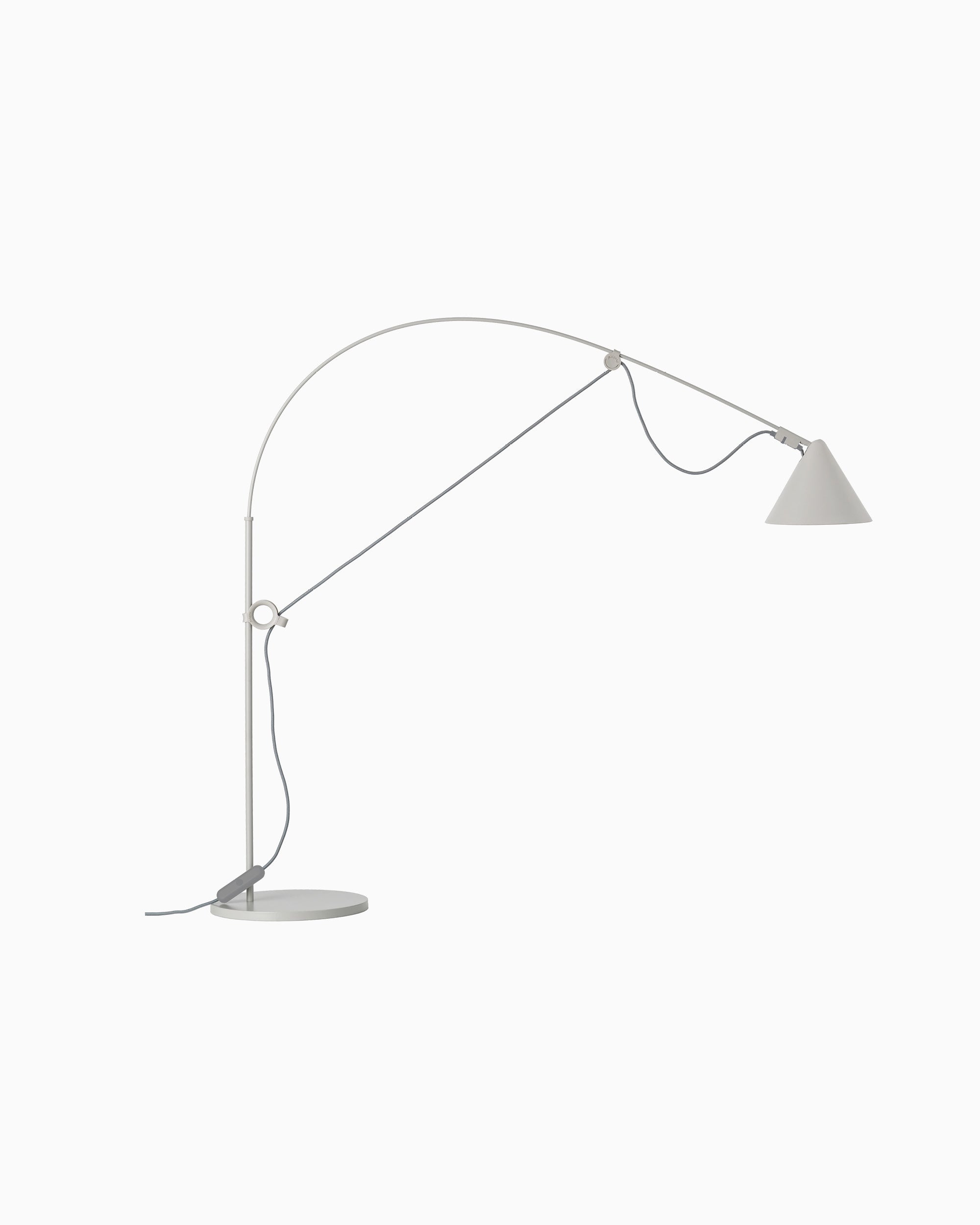

AYNO S table

PATENTED DESIGN BY STEFAN DIEZ
Minimalist, adjustable and versatile, the AYNO lighting family is a modern take on classic Bauhaus design.

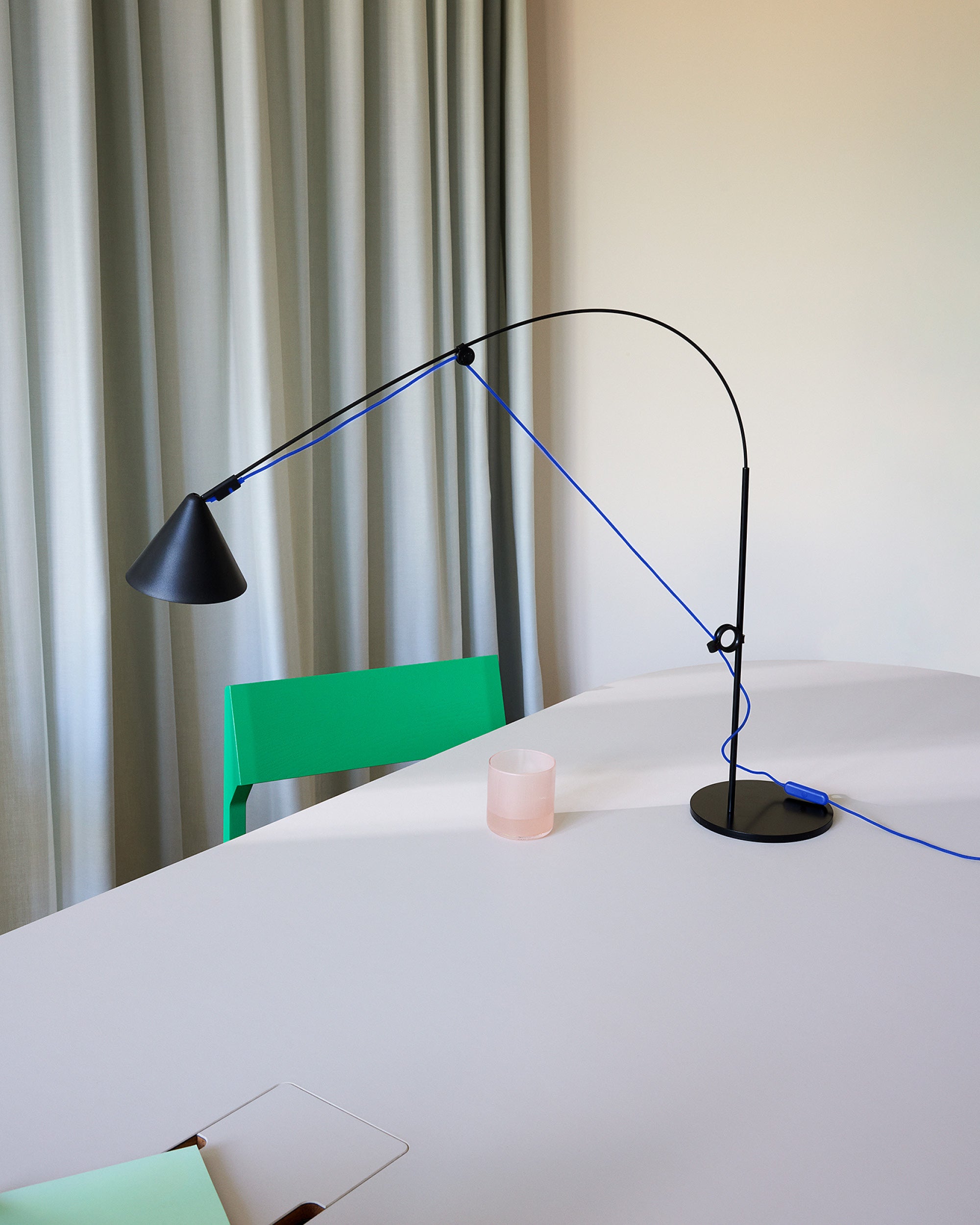

The AYNO S tablelamp illuminates any desk and side table as well as bedside perfectly. The minimalist design allows maximum adjustability offering glare free illumination exactly where needed.

The flexible nature of the arc and two point adjustment allow a flexible outreach of height and width adaptable to any situation, fine adjustment is done with the swiveling lampshade. A soft touch stepless dimmer and the easily exchangeable LED unit in a choice of three lighting colours (2700K | 3000K | 4000K) suit any individual preference.

With an excellent colour rendering index of RA95+, AYNO produces a light that makes surrounding colours and materials glow just like in sunlight.

ABOUT AYNO
Central feature of the AYNO lighting family is a fiberglass rod, which is stretched to the bow by the luminaire cable. The inherent tension of the rod allows a lamp without any joints. By sliding the two adjustment rings attop and bottom, the fiberglass rod is bent into the desired position and the light is directed where needed. The cable tightens the rod into an arc, of which the radius can be varied as required using the adjustment rings. The fine adjustment is done with the swiveling lampshade.

WINNER

DOWNLOADS

Product datasheet

DWG files | AYNO S

CAD files | AYNO S

Product shots on white | high-res

Mood images | high-res

exchangable LED

The LED unit comes in a choice of three lighting colours.
2700K warm | 3000K warmwhite | 4000K coolwhite
With an excellent colour rendering index of RA95+, AYNO produces a light that makes surrounding colours and materials glow just like in sunlight.
The smooth dimming can simply be controlled with a soft touchdimmer

patented AYNO 'Joints'

By sliding the two adjustment rings at top and bottom,the fiberglass rod is bent into the desired position andthe light is directed where needed.
Due to the flexible nature of the arc and the two point adjustment AYNO is adaptable to a variety of spatial conditions while taking up minimal space.

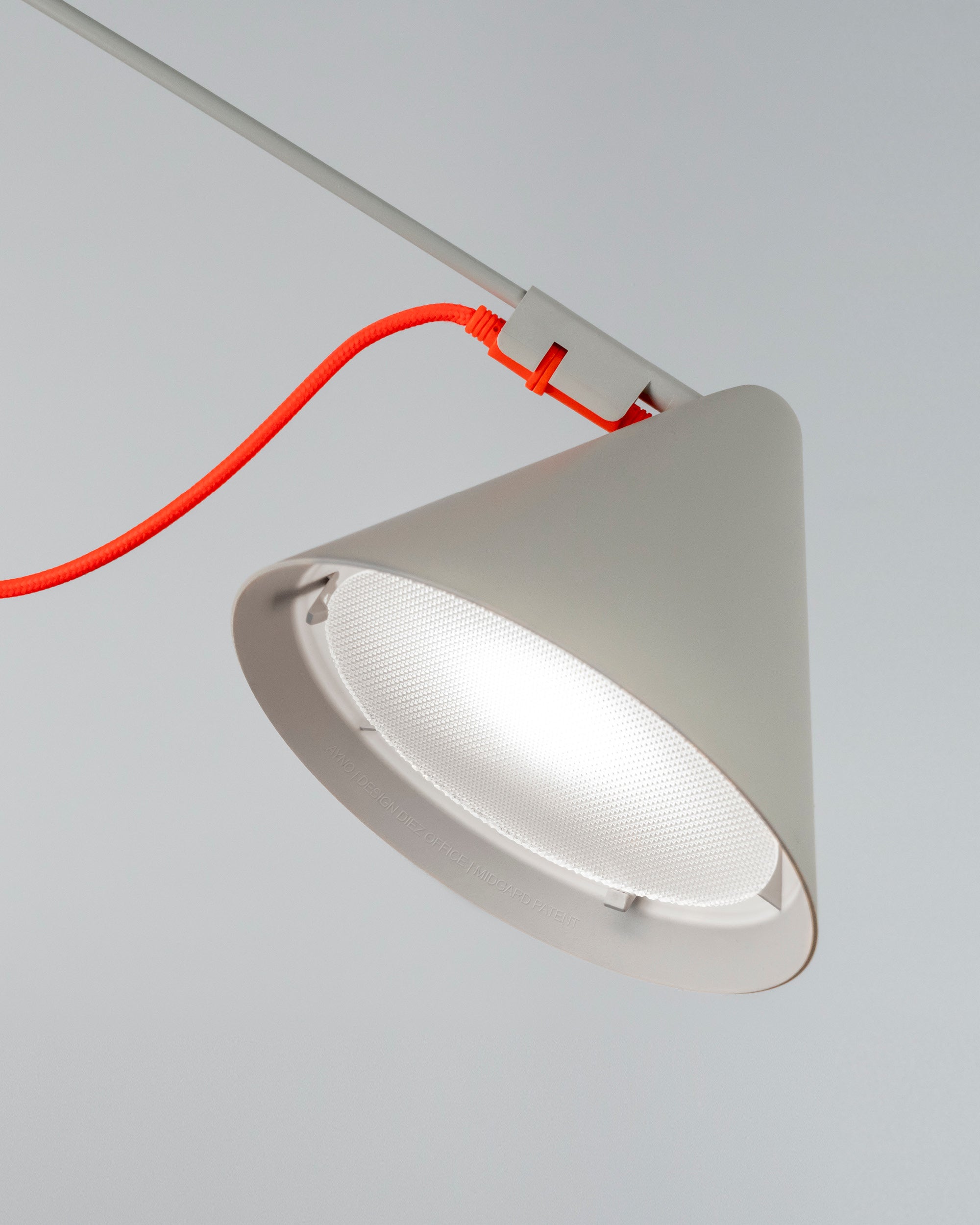

swiveling lampshade

Equally functional is the lamp’s conical shade, crafted from lightweight and unbreakable recycled ABS/PC, following the cradle-to-cradle principle.
The swiveling lampshade allows fine adjustment.

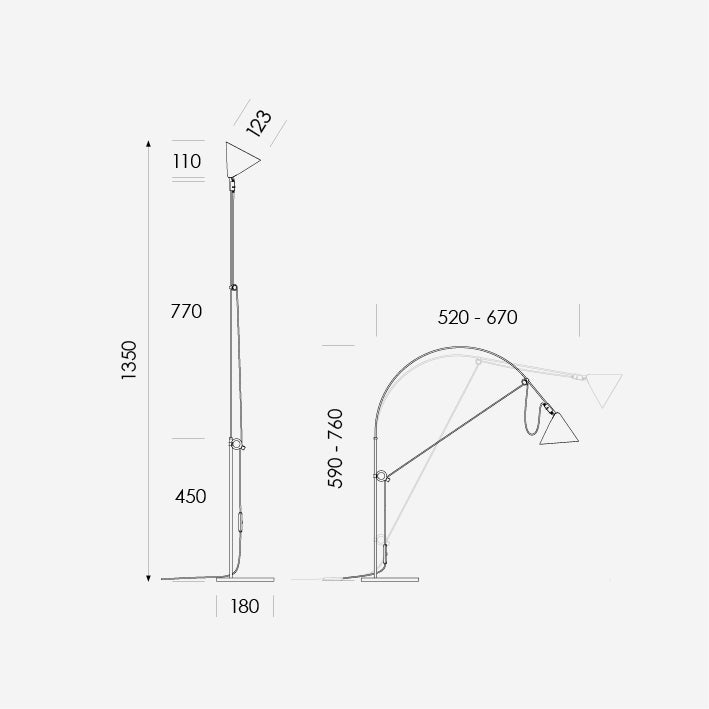

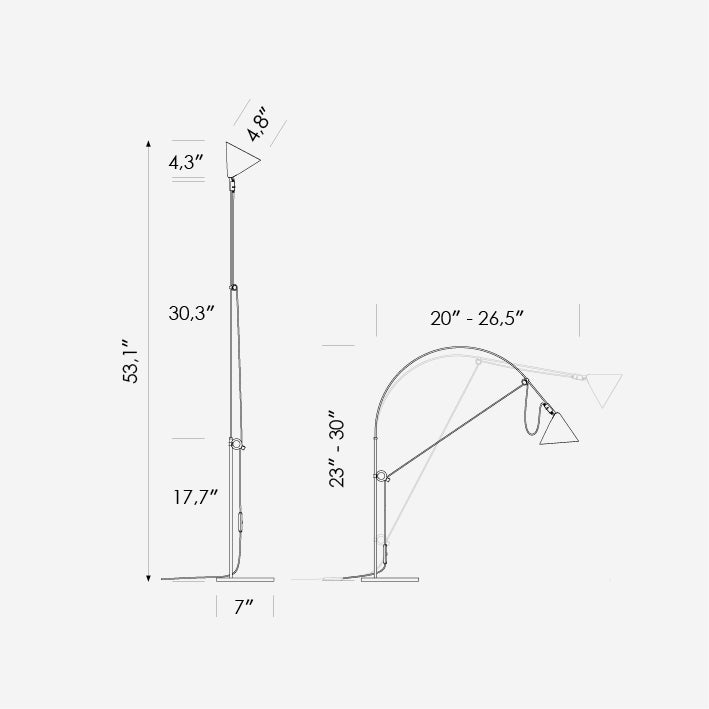

DIMENSIONS

metricmm
imperialinches

FAQs

Can you replace the LED unit?

Yes, the LED lighting unit and lampshade are designed so that it can be changed manually. Instruction video for exchange can be found on midgard.com under following link.

Where can you get a new LED lighting unit?

In our shop or at selected midgard dealers. Find your nearest dealer with our store locator.
SHOP SPARE PARTS

Is the lamp dimmable?

Yes. By means of the on and off switch. Switch on the lamp with a ´click´. Then hold the switch down longer to dim. Releasing it and holding it down again dims back. A short video can be found in following section.

How do the two adjustment rings work?

The upper as well as the lower adjustment ring follow the same principle: The inherent cable tension evoked by the fiberglass rod ´pulls´ the rings into a ´brake´, so they keep their position on the rod. If you want to loosen these rings, the rings are tilted slightly, then they can be moved gently.

Is AYNO available in other sizes?

The AYNO lighting family consists of the AYNO S tablelamp, two floorlamp versions – AYNO L and AYNO XL, and two wall lamp sizes, also in L and XL.

Which colour options are there for AYNO?

The AYNO lighting family comes in two colour options. Black and silkgrey. With complimentary textile cable colour in black and grey. The neon orange textile cable can be choosen for both lamp colours.

Assembling AYNO S
